Tree of Thoughts¶

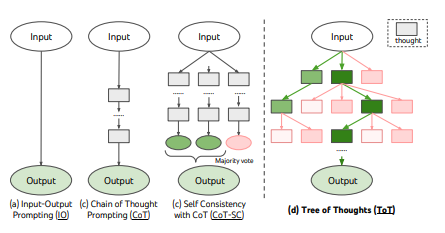

Tree of Thoughts (ToT), by Yao, et. al, is a general LLM agent search algorithm that combines reflection/evaluation and simple search (in this case BFS, though you can apply DFS or other algorithms if you'd like).
It has three main steps:
- Expand: generate 1 or more candidate solutions to the problem.
- Score: measure the quality of the responses.
- Prune: retain the top K best candidates
Then return to "Expand" if no solution is found (or if the solution is of insufficient quality).
Prerequisites¶
We'll install the tutorial's dependent packages and set our API key for the LLM provider of choice.
import getpass
import os
def _set_env(var: str):
if not os.environ.get(var):
os.environ[var] = getpass.getpass(f"{var}: ")
_set_env("OPENAI_API_KEY")
# To visualize the algorithm
trace = True
if trace:
_set_env("LANGSMITH_API_KEY")
os.environ["LANGSMITH_PROJECT"] = "ToT Tutorial"
Task Definition¶
Our agent will try to play the "Game of 24". Given 4 numbers, it must generate a math equation that uses each of these numbers exactly one time to evaluate to a value of 24.
import operator
from typing import List, Literal, Union, NamedTuple, Optional
from pydantic import BaseModel, Field
OperatorType = Literal["+", "-", "*", "/"]
TokenType = Union[float, OperatorType]
## We use these schemas to prompt the LLM to generate equations that evaluate to 24.
class Equation(BaseModel):
"""The formula combining the provided numbers to reach the target of 24."""
tokens: List[TokenType] = Field(
description="The stack of tokens and operators in reverse-polish notation. Example: [3, 4, '+', -1, '*'] would evaluate to (3 + 4) * -1 = -7.",
)
def compute(self) -> float:
op_funcs = {
"+": operator.add,
"-": operator.sub,
"*": operator.mul,
"/": operator.truediv,
}
stack = []
for token in self.tokens:
if isinstance(token, float):
stack.append(token)
else:
b, a = stack.pop(), stack.pop()
stack.append(op_funcs[token](a, b))
return stack[0]
class GuessEquations(BaseModel):
"""Submit multiple equations as guesses."""
reasoning: str = Field(
description="The reasoning behind the submitted guesses. Explain how you arrived at these equations."
)
equations: List[Equation] = Field(
description="The list of equations to submit as guesses."
)
## These objects will represent a single "candidate" (or scored candidate) within our agent's state.
# You can update the candidate object to match your own task.
class Candidate(NamedTuple):
candidate: Equation
score: Optional[float] = None
feedback: Optional[str] = None
def __str__(self):
try:
computed = self.candidate.compute()
except Exception as e:
computed = f"Invalid equation: {self.candidate.tokens}; Error: {repr(e)}"
return f"Equation({self.candidate.tokens}) = {computed} (Reward: {self.score})"
class ScoredCandidate(Candidate):
candidate: Equation
score: float
feedback: str
Fetch data¶
We'll use an example from the Game of 24 dataset.
import requests
import csv
csv_data = requests.get(
"https://storage.googleapis.com/benchmarks-artifacts/game-of-24/24.csv"
).content.decode("utf-8")
# Get just the Puzzles column (column index 1)
puzzles = [row[1].strip() for row in csv.reader(csv_data.splitlines()[1:])]
print(f"Example puzzles: {puzzles[:3]}")
Expander¶
The "tree of thoughts" algorithm is relatively generic. The primary two task-specific components are the expander and the scorer. The expander (the augmented LLM) tries to generate 1 or more solutions to the problem. On subsequent attempts, it is given a seed/candidate value from the previous search.
You can update this section to match your own task requirements. The expander can be arbitrarily complex. All that's required is that it accepts the problem and an optional previous attempt (or attempts) and returns a new result.
API Reference: ChatPromptTemplate | ChatOpenAI
from langchain_core.prompts import ChatPromptTemplate
from langchain_openai import ChatOpenAI
prompt = ChatPromptTemplate.from_messages(
[
(
"system",
"You are playing the Game of 24. Using the provide numbers, create an equation that evaluates to 24.\n"
"Submit exactly {k} guesses for this round.",
),
("user", "Solve the 24 game for these numbers: {problem}.{candidate}"),
],
).partial(candidate="")
llm = ChatOpenAI(model="gpt-4o-mini")
bound_llm = llm.with_structured_output(GuessEquations)
solver = prompt | bound_llm
Scorer¶
In this game, the scorer is easy. We need to assert two things:
- The LLM has generated a valid equation using each number exactly one time.
- The equation evaluates to 24.
You can update this function to match your own task requirements.
def compute_score(problem: str, candidate: Candidate) -> ScoredCandidate:
numbers = list(map(int, problem.split()))
# Check that the candidate equation uses all 4 numbers exactly once
used_numbers = [
token for token in candidate.candidate.tokens if isinstance(token, float)
]
if sorted(used_numbers) != sorted(numbers):
score = 0
feedback = "The equation must use all 4 numbers exactly once."
return ScoredCandidate(
candidate=candidate.candidate, score=score, feedback=feedback
)
try:
result = candidate.candidate.compute()
score = 1 / (1 + abs(24 - result))
feedback = f"Result: {result}"
except Exception as e:
score = 0
feedback = f"Invalid equation. Error: {repr(e)}"
return ScoredCandidate(
candidate=candidate.candidate, score=score, feedback=feedback
)
Graph¶
Now it's time to create our graph.
API Reference: StateGraph | RunnableConfig | Send | MemorySaver
import operator
from typing import Optional, Dict, Any
from typing_extensions import Annotated, TypedDict
from langgraph.graph import StateGraph
from langchain_core.runnables import RunnableConfig
from langgraph.constants import Send
from langgraph.checkpoint.memory import MemorySaver
def update_candidates(
existing: Optional[list] = None,
updates: Optional[Union[list, Literal["clear"]]] = None,
) -> List[str]:
if existing is None:
existing = []
if updates is None:
return existing
if updates == "clear":
return []
# Concatenate the lists
return existing + updates
class ToTState(TypedDict):
problem: str
candidates: Annotated[List[Candidate], update_candidates]
scored_candidates: Annotated[List[ScoredCandidate], update_candidates]
depth: Annotated[int, operator.add]
class Configuration(TypedDict, total=False):
max_depth: int
threshold: float
k: int
beam_size: int
def _ensure_configurable(config: RunnableConfig) -> Configuration:
"""Get params that configure the search algorithm."""
configurable = config.get("configurable", {})
return {
**configurable,
"max_depth": configurable.get("max_depth", 10),
"threshold": config.get("threshold", 0.9),
"k": configurable.get("k", 5),
"beam_size": configurable.get("beam_size", 3),
}
class ExpansionState(ToTState):
seed: Optional[Candidate]
def expand(state: ExpansionState, *, config: RunnableConfig) -> Dict[str, List[str]]:
"""Generate the next state."""
configurable = _ensure_configurable(config)
if not state.get("seed"):
candidate_str = ""
else:
candidate_str = "\n\n" + str(state["seed"])
try:
equation_submission = solver.invoke(
{
"problem": state["problem"],
"candidate": candidate_str,
"k": configurable["k"],
},
config=config,
)
except Exception:
return {"candidates": []}
new_candidates = [
Candidate(candidate=equation) for equation in equation_submission.equations
]
return {"candidates": new_candidates}
def score(state: ToTState) -> Dict[str, List[float]]:
"""Evaluate the candidate generations."""
candidates = state["candidates"]
scored = []
for candidate in candidates:
scored.append(compute_score(state["problem"], candidate))
return {"scored_candidates": scored, "candidates": "clear"}
def prune(
state: ToTState, *, config: RunnableConfig
) -> Dict[str, List[Dict[str, Any]]]:
scored_candidates = state["scored_candidates"]
beam_size = _ensure_configurable(config)["beam_size"]
organized = sorted(
scored_candidates, key=lambda candidate: candidate[1], reverse=True
)
pruned = organized[:beam_size]
return {
# Update the starting point for the next iteration
"candidates": pruned,
# Clear the old memory
"scored_candidates": "clear",
# Increment the depth by 1
"depth": 1,
}
def should_terminate(
state: ToTState, config: RunnableConfig
) -> Union[Literal["__end__"], Send]:
configurable = _ensure_configurable(config)
solved = state["candidates"][0].score >= configurable["threshold"]
if solved or state["depth"] >= configurable["max_depth"]:
return "__end__"
return [
Send("expand", {**state, "somevalseed": candidate})
for candidate in state["candidates"]
]
# Create the graph
builder = StateGraph(state_schema=ToTState, config_schema=Configuration)
# Add nodes
builder.add_node(expand)
builder.add_node(score)
builder.add_node(prune)
# Add edges
builder.add_edge("expand", "score")
builder.add_edge("score", "prune")
builder.add_conditional_edges("prune", should_terminate, path_map=["expand", "__end__"])
# Set entry point
builder.add_edge("__start__", "expand")
# Compile the graph
graph = builder.compile(checkpointer=MemorySaver())
Run¶
Now let's try it on one of the puzzles!
config = {
"configurable": {
"thread_id": "test_1",
"depth": 10,
}
}
for step in graph.stream({"problem": puzzles[42]}, config):
print(step)
{'expand': {'candidates': [Candidate(candidate=Equation(tokens=[12.0, 5.0, '/', 7.0, '*']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[12.0, 1.0, '+', 5.0, '*']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[12.0, 7.0, '*', 1.0, '/']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[5.0, 7.0, '*', 1.0, '*']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[7.0, 5.0, '*', 12.0, '/']), score=None, feedback=None)]}}
{'score': {'candidates': 'clear', 'scored_candidates': [ScoredCandidate(candidate=Equation(tokens=[12.0, 5.0, '/', 7.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 1.0, '+', 5.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 7.0, '*', 1.0, '/']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[5.0, 7.0, '*', 1.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[7.0, 5.0, '*', 12.0, '/']), score=0, feedback='The equation must use all 4 numbers exactly once.')]}}
{'prune': {'candidates': [ScoredCandidate(candidate=Equation(tokens=[12.0, 5.0, '/', 7.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 1.0, '+', 5.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 7.0, '*', 1.0, '/']), score=0, feedback='The equation must use all 4 numbers exactly once.')], 'scored_candidates': 'clear', 'depth': 1}}
{'expand': {'candidates': [Candidate(candidate=Equation(tokens=[12.0, 5.0, '-', 1.0, '*']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[1.0, 7.0, '*', 5.0, '+']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[12.0, 1.0, '+', 5.0, '*']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[7.0, 5.0, '*', 1.0, '-']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[12.0, 1.0, '*', 5.0, '-']), score=None, feedback=None)]}}
{'expand': {'candidates': []}}
{'expand': {'candidates': [Candidate(candidate=Equation(tokens=[5.0, 7.0, '*', 12.0, '-']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[1.0, 5.0, 7.0, '*', 12.0, '-', '+']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[12.0, 1.0, '*', 5.0, 7.0, '/']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[12.0, 5.0, '*', 7.0, '/', 1.0, '-']), score=None, feedback=None), Candidate(candidate=Equation(tokens=[5.0, 7.0, '*', 1.0, '-', 12.0, '+']), score=None, feedback=None)]}}
{'score': {'candidates': 'clear', 'scored_candidates': [ScoredCandidate(candidate=Equation(tokens=[12.0, 5.0, '/', 7.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 1.0, '+', 5.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 7.0, '*', 1.0, '/']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[5.0, 7.0, '*', 12.0, '-']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[1.0, 5.0, 7.0, '*', 12.0, '-', '+']), score=1.0, feedback='Result: 24.0'), ScoredCandidate(candidate=Equation(tokens=[12.0, 1.0, '*', 5.0, 7.0, '/']), score=0.07692307692307693, feedback='Result: 12.0'), ScoredCandidate(candidate=Equation(tokens=[12.0, 5.0, '*', 7.0, '/', 1.0, '-']), score=0.05737704918032786, feedback='Result: 7.571428571428571'), ScoredCandidate(candidate=Equation(tokens=[5.0, 7.0, '*', 1.0, '-', 12.0, '+']), score=0.043478260869565216, feedback='Result: 46.0'), ScoredCandidate(candidate=Equation(tokens=[12.0, 5.0, '-', 1.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[1.0, 7.0, '*', 5.0, '+']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 1.0, '+', 5.0, '*']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[7.0, 5.0, '*', 1.0, '-']), score=0, feedback='The equation must use all 4 numbers exactly once.'), ScoredCandidate(candidate=Equation(tokens=[12.0, 1.0, '*', 5.0, '-']), score=0, feedback='The equation must use all 4 numbers exactly once.')]}}
{'prune': {'candidates': [ScoredCandidate(candidate=Equation(tokens=[1.0, 5.0, 7.0, '*', 12.0, '-', '+']), score=1.0, feedback='Result: 24.0'), ScoredCandidate(candidate=Equation(tokens=[12.0, 1.0, '*', 5.0, 7.0, '/']), score=0.07692307692307693, feedback='Result: 12.0'), ScoredCandidate(candidate=Equation(tokens=[12.0, 5.0, '*', 7.0, '/', 1.0, '-']), score=0.05737704918032786, feedback='Result: 7.571428571428571')], 'scored_candidates': 'clear', 'depth': 1}}
final_state = graph.get_state(config)
winning_solution = final_state.values["candidates"][0]
search_depth = final_state.values["depth"]
if winning_solution[1] == 1:
print(f"Found a winning solution in {search_depth} steps: {winning_solution}")
else:
print(
f"Failed to find a winning solution in {search_depth} steps. Best guess: {winning_solution}"
)
Found a winning solution in 2 steps: [Equation(tokens=[1.0, 5.0, 7.0, '*', 12.0, '-', '+']), 1.0, 'Result: 24.0']
